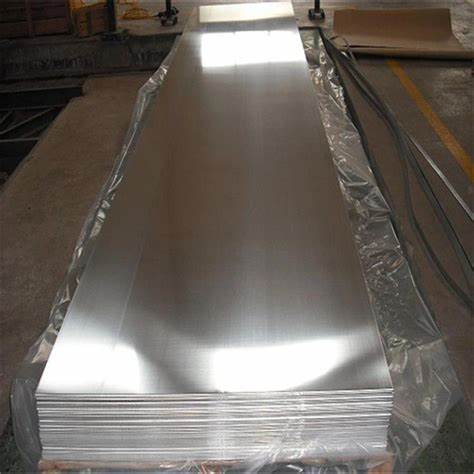

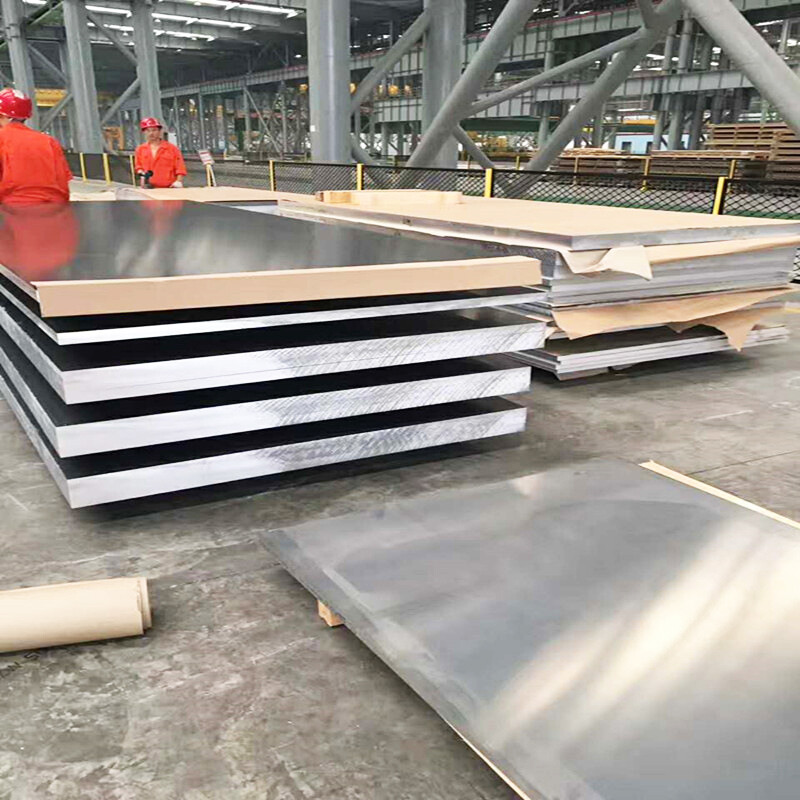

Aluminium Sheet 5052

Material: 1000 series, 2000 series, 3000 series, 4000 series,
5000 series, 6000 series, 7000 series.
Delivery time:Usually 3-7 days, or upon negotiation
Competitive price and quality from our own factory
Terms of price: EXW, FOB, CFR, CIF
Payment Term:TT,L/C,etc
Certificates: SGS, MTC, ISO9001, CE, SGS

If you have any questions, please feel free to contact us.

Send Email

Get A Free Quote

PRODUCT INTRODUCTION

What is an Aluminium Sheet?

After the material is refined and alloyed with other elements, sheet Aluminium is made through a process involving the rolling and flattening of cast ingots. The process is tightly controlled and produces consistent thicknesses.

The thicknesses available range from 0.5mm up to 6mm, and in a multitude of different grades and tempers. Different thicknesses are preferred for different applications.

The temper of the Aluminium sheet is the state of heat treatment it is currently in. This affects the strength and workability of the material. Not all Aluminium grades can be heat-treated.

Why use an Aluminium Sheet?

After steel and its variations, Aluminium is the most commonly found metal in the industry. It has multiple beneficial properties when compared to steel or stainless steel, these include:

·Lightness

·Relative Strength

·Corrosion resistance

·Low cost

PRODUCT DESCRIPTION

Product Name	Aluminum Sheet/Plate
Standard	GB, JIS, DIN, ASTM,etc.
Material	a) 1000 Series: 1050，1060，1070, 1100, 1200, 1235, etc.
	b) 2000 Series: 2A12, 2014, 2024 etc.
	c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.
	d) 4000 Series: 4045, 4047, 4343, etc.
	e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc.
	f)6000 Series: 6061, 6063, 6082, 6A02, etc.
	g) 7000 Series: 7075, etc.
Thickness	Thin Plate Thickness:0.15 mm- 2.0mm
	Regular Plate Thickness:2.0mm-6.0mm
	Medium Plate Thickness:6.0 mmt-25.0mm
	Thick Plate Thickness:25mm-200mm
	Extra Thick Plate Thickness:more than 200mm
Thickness	0.15mm - 10mm,as Your Request
Width	1000mm, 1200mm, 1250mm, 1500mm, 2000mm or any cut to size
Temper	O, H12, H14, H16, H18, H22, H24, H26, H28, H32, F, H112, T651, T3, T451, T4, T6, etc
Surface	Mill finish,polished,anodizing,brushing,sand blasting,powder coating,etc

CHEMICAL COMPOSITION

Grade	SI	FE	CU	MN	MG	CR	NI	ZN	AL
1050	0.25	0.4	0.05	0.05	0.05			0.05	99.5
1060	0.25	0.35	0.05	0.03	0.03			0.05	99.6
1070	0.2	0.25	0.04	0.Q3	0.03			0.04	99.7
1100	Si+Fe:0.95		0.05-0.2	0.05			0.1		99
1200	Si+Fe:1.00		0.05	0.05			0.1	0.05	99
1235	Si+Fe:0.65		0.05	0.05	0.05		0.1	0.06	99.35
3003	0.6	0.7	0.05-0.2	1.0-1.5				0.1	remains
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3			0.25	remains
3005	0.6	0.7	0.25	1.0-1.5	0.20-0.6	0.1		0.25	remains
3105	0.6	0.7	0.3	0.30-0.8	0.20-0.8	0.2		0.4	remains
3A21	0.6	[0.7	0.2	.0-1.6	0.05			0.1	remains
5005	0.3	[0.7	0.2	0.2	0.50-1.1	0.1		0.25	remains
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35		0.1	remains
5083	0.4	0.4	0.1	0.40-1.0	4.0-4.9	0.05-0.25		0.25	remains
5154	0.25	0.4	0.1	0.1	3.1 -3.9	0.15-0.35		0.2	remains
5182	0.2	0.35	0.15	0.20-0.50	4.0-5.0	o.i		0.25	remains
5251	0.4	0.5	0.15	0.1-Q.5	1.7-2.4	0.15		0.15	remains
5754	0.4	0.4	0.1	0.5	2.6-3.6	0.3		0.2	remains
