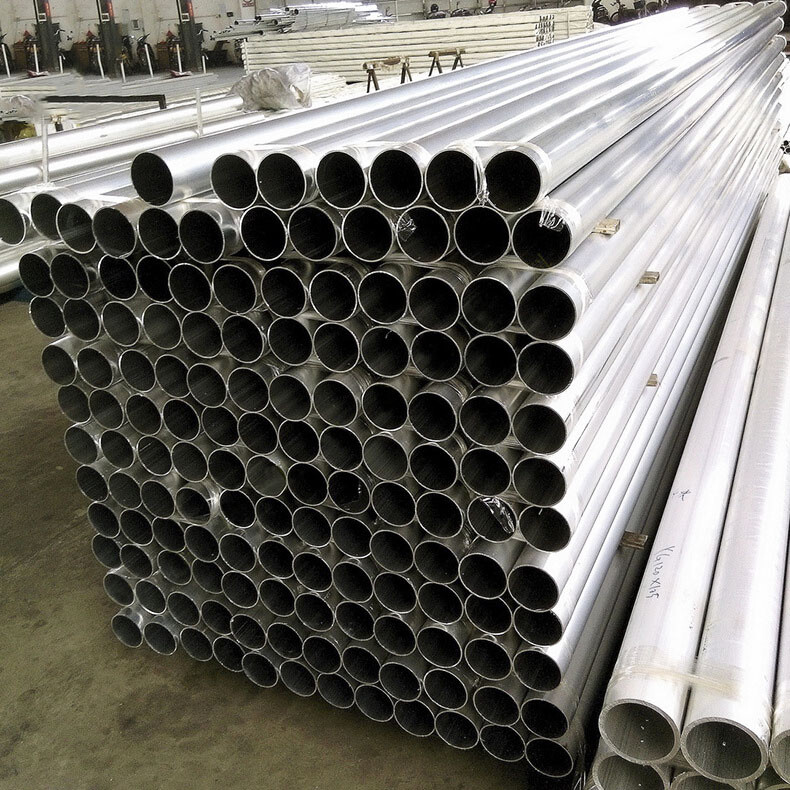

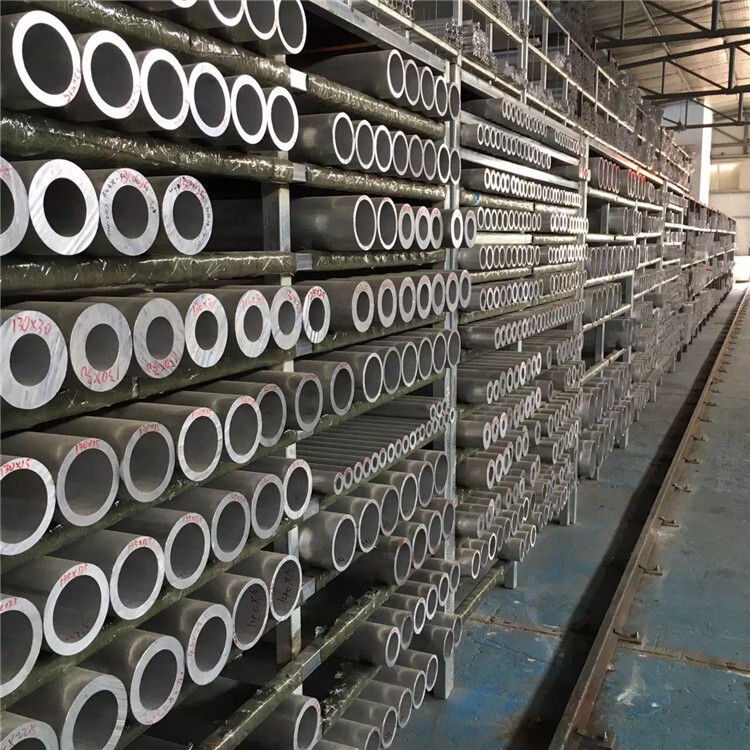

Aluminium Pipe 1060

Material: 1000 series, 2000 series, 3000 series, 4000 series,
5000 series, 6000 series, 7000 series.
Delivery time:Usually 3-7 days, or upon negotiation
Competitive price and quality from our own factory
Terms of price: EXW, FOB, CFR, CIF
Payment Term:TT,L/C,etc
Certificates: SGS, MTC, ISO9001, CE, SGS

If you have any questions, please feel free to contact us.

Send Email

Get A Free Quote

PRODUCT INTRODUCTION

Why use Aluminium tubing?

Thanks to its great strength-to-weight ratio, ductility, and malleability, aluminium can be made into many different shapes, via both traditional rolling processes as well as extruding. This means aluminium tubing can be made for both precision and cost-effectiveness.

When compared to steel, aluminium has two further distinct advantages, strength and corrosion resistance. Whilst steel is stronger per volume, e.g. a bar of steel would be stronger than an identically shaped bar of aluminium, steel has a much lower strength-to-weight ratio.

In real-world terms, if two structures were designed to carry the same load, but one made from aluminium and one from steel, the aluminium one would be larger in size but weigh less than half of the steel one.

Benefits of Aluminium Tubing

Alternatives to aluminium generally include steel, stainless steel and titanium, aluminium has benefits over all three of these, when in the right conditions.

Lighter: Aluminium is lighter than steel, stainless steel and titanium

Stronger: Aluminium has a higher strength-to-weight ratio than steel and stainless steel, perfect for lightweight high-stress applications

Corrosion resistant: Whilst steel is cheaper than aluminium, any product that sees outdoor use will need secondary finishing by way of painting or galvanizing, Aluminium is corrosion resistant in most applications.

Cheaper: Aluminium is considerably cheaper than titanium, another lightweight corrosion-resistant alloy

PRODUCT DESCRIPTION

Product Name	Aluminum Pipe/Tube
Standard	GB, JIS, DIN, ASTM,etc.
Material	a) 1000 Series: 1050，1060，1070, 1100, 1200, 1235, etc.
	b) 2000 Series: 2A12, 2014, 2024 etc.
	c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.
	d) 4000 Series: 4045, 4047, 4343, etc.
	e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc.
	f)6000 Series: 6061, 6063, 6082, 6A02, etc.
	g) 7000 Series: 7075, etc.
Outer Diameter	3-250mm,as Your Request
Wall Thickness	0.3-50mm
Length	10mm -6000mm
Temper	O, H12, H14, H16, H18, H22, H24, H26, H28, H32, F, H112, T651, T3, T451, T4, T6, etc
Surface	Mill finish,polished,anodizing,brushing,sand blasting,powder coating,etc

CHEMICAL COMPOSITION

Grade	SI	FE	CU	MN	MG	CR	NI	ZN	AL
1050	0.25	0.4	0.05	0.05	0.05			0.05	99.5
1060	0.25	0.35	0.05	0.03	0.03			0.05	99.6
1070	0.2	0.25	0.04	0.Q3	0.03			0.04	99.7
1100	Si+Fe:0.95		0.05-0.2	0.05			0.1		99
1200	Si+Fe:1.00		0.05	0.05			0.1	0.05	99
1235	Si+Fe:0.65		0.05	0.05	0.05		0.1	0.06	99.35
3003	0.6	0.7	0.05-0.2	1.0-1.5				0.1	remains
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3			0.25	remains
3005	0.6	0.7	0.25	1.0-1.5	0.20-0.6	0.1		0.25	remains
3105	0.6	0.7	0.3	0.30-0.8	0.20-0.8	0.2		0.4	remains
3A21	0.6	[0.7	0.2	.0-1.6	0.05			0.1	remains
5005	0.3	[0.7	0.2	0.2	0.50-1.1	0.1		0.25	remains
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35		0.1	remains
5083	0.4	0.4	0.1	0.40-1.0	4.0-4.9	0.05-0.25		0.25	remains
5154	0.25	0.4	0.1	0.1	3.1 -3.9	0.15-0.35		0.2	remains
5182	0.2	0.35	0.15	0.20-0.50	4.0-5.0	o.i		0.25	remains
5251	0.4	0.5	0.15	0.1-Q.5	1.7-2.4	0.15		0.15	remains
5754	0.4	0.4	0.1	0.5	2.6-3.6	0.3		0.2	remains
